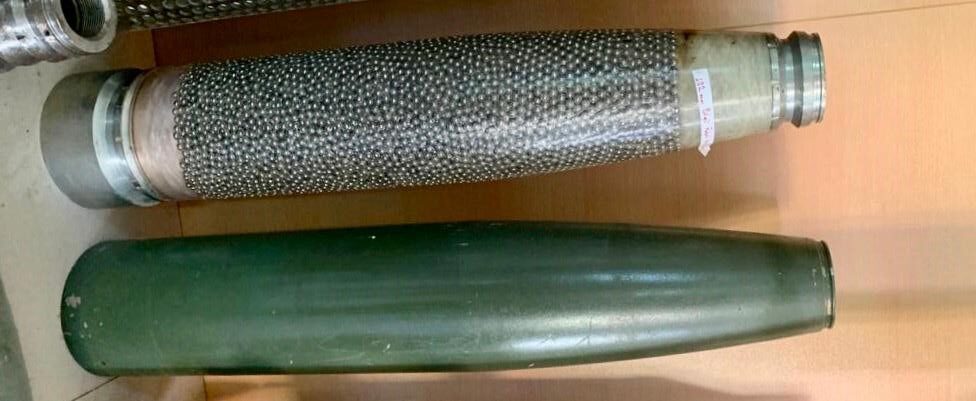

122мм Pre-fragmented warhead AIX2 TECHNICAL SPECIFICATIONS STANAG compliant
- All metal parts Zink coated
- Fiberglass material 1200
- Red primer paint
- Green enamel paint
- Silicon grease
- Cup cover in front
- 3000 Kgf pressure test
- Glass change temperature test 115 C
- NATO compliant, developed and tested by STANAG
| Operation | Unguidеd ground to ground |
|---|---|
|
Overall Length |
604 mm |
|
Diameter |
121 mm |
|
Warhead weight without fuze |
18,4 kg |
|
Warhead weight with fuze |
19.18 kg |
|
Warhead weight without explosive |
14,6 kg |
|
Explosive |
4,4 kg |
|
Operation Temperature |
-60° C to +80° C |
|
Explosive Type |
A-IX-2 |
|
Number of fragments |
Pre fragmented 5 500 pcs 6,35mm (1 gram) Fragments from the body 1210 pcs |
|
Damage areа |
Against manpower 3 600 m2 Against soft shell vehicles 840 m2 |
