drones

Surface to Ground guided weapon 10kg warhead

Tactical modes:

• Radar seeker warhead

• Jammer seeker warhead

• EO/RI  AI autonomous target recognition & tracking

• Shoot and forget GNSS mode

• 24HR ISR mission

TACTICAL CHARACTERISTICS

• WARHEAD  8-12 kg

Thermobaric 4,4 x TNT equivalent

• Flight Endurance:

  • 24 h ISR Mission

  • 12 h 10kg warhead

• Range  up to 1200 km

• Communication Range – 90 km LOS

• GPS-Aided INS with Air Data Computer

• RCS    –  0,1 m2 @ 10 GHz

• Launch system

• Recovery system – Parachute & Airbag

• Deployment tine 15 min

• Crew 2

SPECIFICATIONS

• Length – 1540 mm

• Wingspan – 3000 mm (+winglets)

•  MTOW – 38 kg

• Engine – thermal

  • Max speed 210 km/hr

  • Cruise speed 150 km/hr

  • Maximum Altitude  5000m



  Propulsion:

  • Electronic Injection

  • Generator

  • Multi-fuel Capabilities



  Launch system

  • Booster 5 pcs

  • Catapult



  Aerodynamics design has been optimized by Computational Fluid



Surface to Ground guided weapon 10kg warhead

Tactical modes:

• Radar seeker warhead

• Jammer seeker warhead

• EO/RI  AI autonomous target recognition & tracking

• Shoot and forget GNSS mode

• 24HR ISR mission

TACTICAL CHARACTERISTICS

• WARHEAD  8-12 kg

Thermobaric 4,4 x TNT equivalent

• Flight Endurance:

  • 24 h ISR Mission

  • 12 h 10kg warhead

• Range  up to 1200 km

• Communication Range – 90 km LOS

• GPS-Aided INS with Air Data Computer

• RCS    –  0,1 m2 @ 10 GHz

• Launch system

• Recovery system – Parachute & Airbag

• Deployment tine 15 min

• Crew 2

SPECIFICATIONS

• Length – 1540 mm

• Wingspan – 3000 mm (+winglets)

•  MTOW – 38 kg

• Engine – thermal

  • Max speed 210 km/hr

  • Cruise speed 150 km/hr

  • Maximum Altitude  5000m



  Propulsion:

  • Electronic Injection

  • Generator

  • Multi-fuel Capabilities



  Launch system

  • Booster 5 pcs

  • Catapult



  Aerodynamics design has been optimized by Computational Fluid

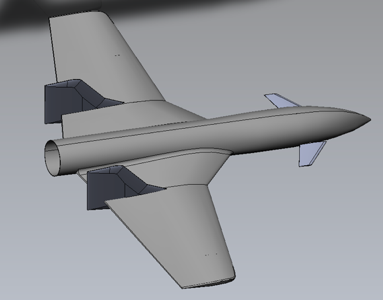

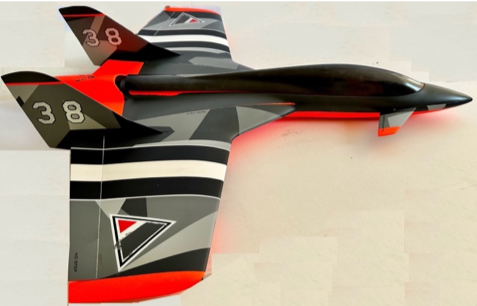

STING

Surface to Air AI Interceptor

FIRE CONTROL MODES

• Radar/GPS  guided
• Artificial Intelligence guided EO/IR
• FPV guiding mode

TACTICAL CHARACTERISTICS

• Warhead HE Frag  0,9 kg
• Max speed 300 km/hr (electric)
• Max speed 340 km/hr (thermal)
• Max speed 440 km/hr (Jet turbine)
• Flight Endurance – 10/30 min
• Maximum Altitude – 5 000m
• Range  40km
• Communication Range -40 km LOS
• RCS    –  0,001 m2 @ 10 GHz

TECHNICAL SPECIFICATIONS

• Length – 860 mm
• Wingspan – 960 mm
•  MTOW – 5,2 kg
• Engine – electric/ 2 stroke/Jet turbine
• 14,000mah Li-Ion  or 1L fuel

Air targets Proximity Radar sensor

• K-Band
• FMCW
• 30° sector
• 1 m – 30 m
• Approach Velocity from 20-1000 m/sec

Launch system

• Booster 5 pcs
• Catapult
• Air launch (Jet)

Optional equipment:

• Telemetry Wide Band Frequency Hopping AES256 3W
• Inertial navigation system
• Antenna tracker & patch antenna
• ADS-B

170kg MTOW

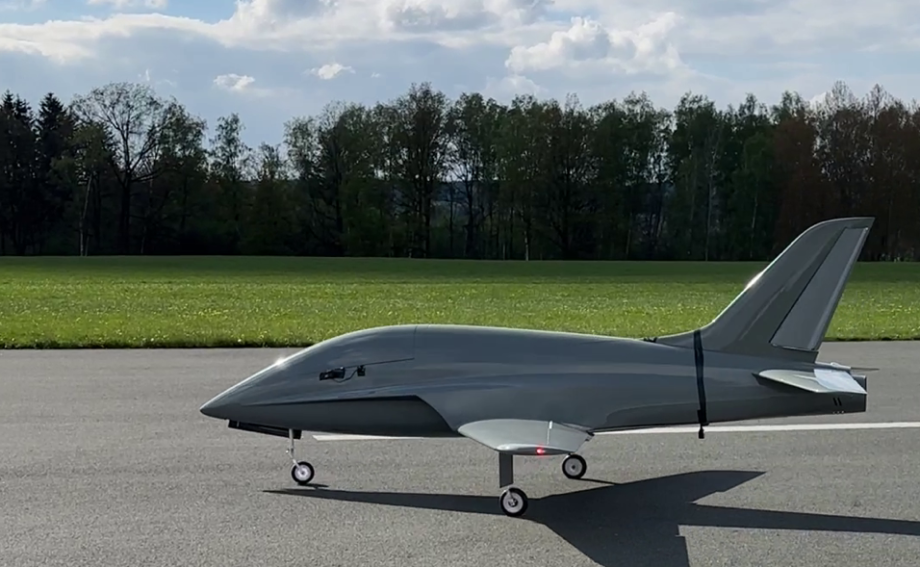

Hercules is a multifunctional stealth jet designed for all-weather and round-the-clock destruction of ground and air targets at significant distances of up to 200 km from bases using a high-precision weapon.

The Hercules is capable of effectively performing the following combat missions:

• High-precision strikes with loitering munitions from 7000m
• Bomber 50 kg payload

Loitering munitions:

• 3 pcs STING Air to Air AI Interceptor. 300km/hr. Range  50km

• 3pcs Hornet Air to Ground . 3 kg payload. Range 80km

• 3 pcs Predator Air to Ground. 10kg payload. Range 120km

Guidance mode:

• Jammer /Radar seeker
• Automatic AI object recognition
• FPV guidance

Air-to-Air Missiles

• Igla-2, Grom, Stinger  (integration option)

Key Benefits

• Fully automated take off and landing;
• Round-the-clock and all-weather operation;
• the ability to effectively perform combat missions without escort and in electronic warfare conditions;
• the ability to perform strike missions at a long distance – 200km

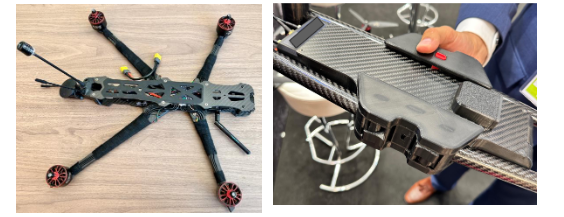

AI 11″ Kamikaze “Wasp” 430mm

Attack MODES:

• Kamikaze MODE –  AI target tracking (form 300m)
• Automated Jammer/Radar Seeker. Against Panzir, Thor, Buk

Optional equipment:

• Telemetry Wide Band Frequency Hopping AES256 2×1,5W
• Seeker (Jammer / Radar)
• AI object recognition & tracking system
• Antenna tracker & patch antenna
• Remote control

SCOPE OF SUPPLY

• 11″ Drone
• 2 Batteries  8S
• Battery Charger
• Travel Case
• Battery Bag
• Spare parts
• Warranty
• 1 Year Support

Payload:

1. a) 10 pcs  M82  HiMars cumulative
2. b) 2pcs PG-7 x 1,4 kg 80mm
3. c) 80mm Pre-Frag  2m proximity
4. d) 100 mm Cumulative
5. e) 120mm Explosive formatted projectile (EFP) 20m distance

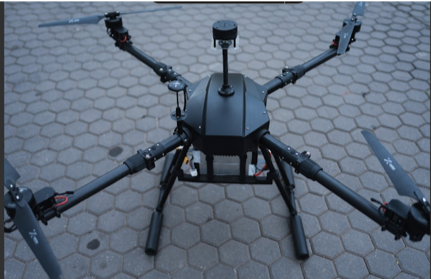

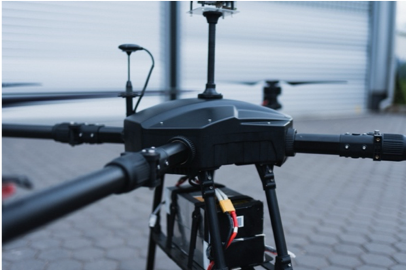

The Raptor is guided by AI processor with object recognition base on set of low light cameras . Can operate night time.

Utilizes  distance measurement sensors for Obstacle Avoidance.

1. a) Tethered Mode.

• Unlimited operational time 24/7.
• No need of battery .
• Safer
• Can be operated without GPS
• Can operate night time
• Reduced spatial area where it can fly

1. b) Battery Mode.

• Allows operation on up to 500m
• Covers hard to access zones.
• 20 min operational time

SPECS

• Battery 30 000 mA
• Motors 1800W each
• Payload 12kg
• Operational altitude 3000m
• Portable: 66x66x66 cm
• Drone Weight: 7kg.
• Works in maximum winds of 18 m/s.
• -20°C to 55°C Working temperature range
• GNSS accuracy
• Hovering precision (good GNSS signal)
• With D-RTK enabled: ±20 cm
• RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, and Galileo E1/E5
• Ground-based tethered powered or  battery-powered
• Spray: water, soap, detergent, bleach, or etc.
• Pressure: max 3,500 psi
• Output: 30-38 lpm
• Fly up to 100 meters with hose.

No limit with water tank.

• Power Supply: 18  kilos
• Flying time 24/7 by cable

• ADS-B Advanced flight / collision warning system
• Window cleaning and remove dirt, dust, and grime

SCOPE OF SUPPLY

1 Raptor Cleaning Drone with AI system & 15L tank

1 Remote Controller

1 Ground Control Station & telemetry

1 Digital HD FPV googles

1 High Voltage power supply  & cable up to 100m

1 Nozzle

4 Batteries 8 pcs 6S

1 Battery Charger

1 Repair Kit

1 Travel Case

1 Battery Bag

1 Weather control station

Spare parts (Props, antennas, batteries , cables)

Training

Warranty

1 Year Support

Payload

• 4 pcs 82/81mm mortar bombs
• 1 pcs 120mm mortar bombs
• 6 pcs UAV munitions 80mm 1,7 kg
• 20 pcs 60mm 0,7kg UAV munitions

Viper

Reconnaissance, Guiding & Radio Relay for Kamikaze drones

Designated to recognize targets, provides GPS coordinates and communication over radio relay.

EORI AI surveillance & recognition

• Autonomous Identification and Recognition of  BUK, Thor, Pamzir, Kub, S300 , TPQ-36/37, Patriot , armored vehicles, Howitzers, storages, military ships and boats. (Provides the GPS coordinates)
• Dual EO-IR stabilized camera turret crafted for long range observation applications that demand very low weight ZOOM X40 (X20 + X2 digital)

FOV 60° WFOV – 3° NFOV – 1.5° DFOV

THERMAL RESOLUTION 1280×720

Radio Relay options (for FPV Kamikaze drones)

Signal intelligence (Radars, Jammers, Drones)

• GPS Jammer seeker
• Air Defense Radars seeker
• Drones early warning seeker

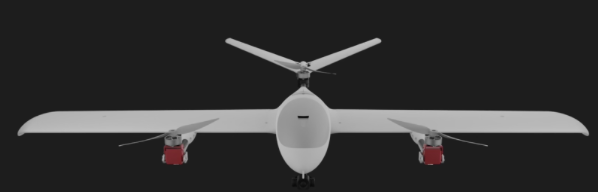

Next generation tilt rotor VTOL.

Wingspan 2m

Max range 140km

Max flight time 2 hours

Max payload 1,5 kg

Max takeoff weight 6kg

Max flight altitude 55000m

Command & Control range 60km+  with antenna tracker

Cruise speed 80 km/hr

Wind tolerance Hoover   14 m/sec

Wind tolerance gusting cruise      24 m/sec

Transport Case Dimensions   220 x 83 x 27 cm

IP 55

ELRS 915MHz/868MHz

• Antenna Connector: RP-SMA(2.4GHz), SMA(915/868MHz)
• RF Power(915/868MHz): 50mW/100mW/250mW/500mW/1000mW/2000mW
• Packet Rate(915/868MHz): 25Hz/50Hz/100Hz/100Hz Full/200Hz/D50
• Frequency Band:  915MHz FCC, 868MHz EU
• Power Consumption(915/868MHz): 8V,1000mA@1000mW, 50Hz，1:128
• Firmware Version: ExpressLRS

FPV

• Analog  25-2500mW 4,9-5.8GHz VTX w/ Smart Audio – MMCX CHANNEL: 48CH

• Dual-Way Full HD Digital Transmission

• 30+KM Range
• 5100 to 5825 MHz
• Digital Video 150ms Low Latency 1080p@60fps H.264 & H.265 Decoding
• RC & RC Relay
• Long Range Antenna
• Supports PIX and QGC
