CW Rada
Тactical Target Detecting Radar
Introduction

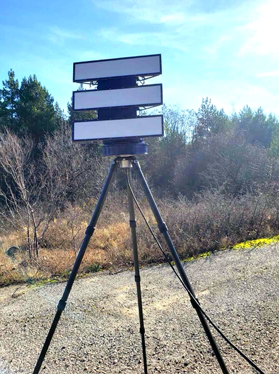

- Structure and operating principle of the 3D CW Radar
Purpose
- The radar is intended for detecting, determining coordinates and accompanying air and surface objects (including small-sized objects), as well as transmitting their information to remote users. Optionally can manage surveillance camera or active agents for combating.
Technical characteristics
| Radar type | 3D CW Radar |
|---|---|
|
Frequency range |
X Band |
|
Transmitting pulse power |
14 W |
|
Power consumption |
90W |
|
Operating voltage |
24V |
|
Weight |
20 kg (with the mechanics of the rotation system) |
|
Antenna system diagram |
- horizontally - 5 ° - vertically - 30 ° |
|
Scanning angle |
- in azimuth: 0 - 360 ° - Antenna inclination: 0 ° ÷ 15 ° |
|
Detection range |
RCS 0,005 m2 – 2 km (F-35 / JSF) RCS 0,003 m2 – 2 km (F-117) RCS 0,01 m2 – 2 km (Nano UAVS) RCS 0,1 m2 – 4 km (B2, F-16 Viper, Eurofighter) RCS 0,5 m2 – 5 km (surveillance Drone) RCS 1,2 m2 – 10 km (F-16 C) RCS 3,0 m2 – 12 km (Mig 21, Mig 29) RCS 4,0 m2 – 14 km (Su 30-MKI) RCS 6,0 m2 – 15 km (Helicopter) RCS 15,0 m2 – 24 km (Su27) |
|
Working scales |
2, 4, 8, 12, 16, 24 кm |
|
Accuracy of measured coordinates by distance |
0,5 m – 2 m |
|
Range resolution |
4 m |
|
Accuracy of measured coordinates by distance |
0,1° |
|
Minimum/maximum target altitude |
10m /16 km |
|
Cowerage, azimuth/elevation |
90°/30° |
|
Number of tracking objects |
1 000 |
|
Work temperature |
-300C … +500C |
|
Dust and water resistance |
IP65 |
|
Alarm when object (s) enter a specified area |
Yes |
|
Interface Radar to RLI extractor |
Gbit DATA 100 Mbit control and diagnostics |
|
Interface Workplace to C2 system and remote control |
TCP/IP ASTERIX |
Antenna system

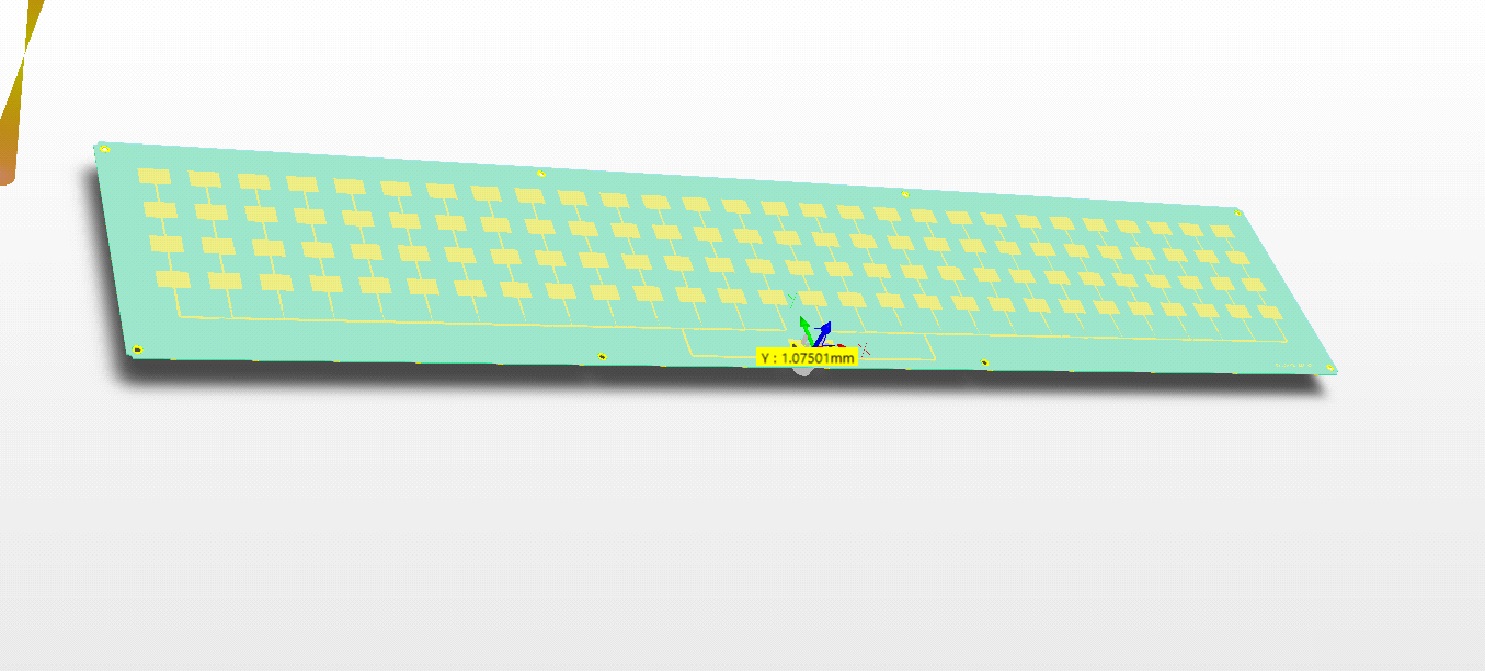

Phased antenna array 28 x 4 patch elements, with Gaussian energy distribution.

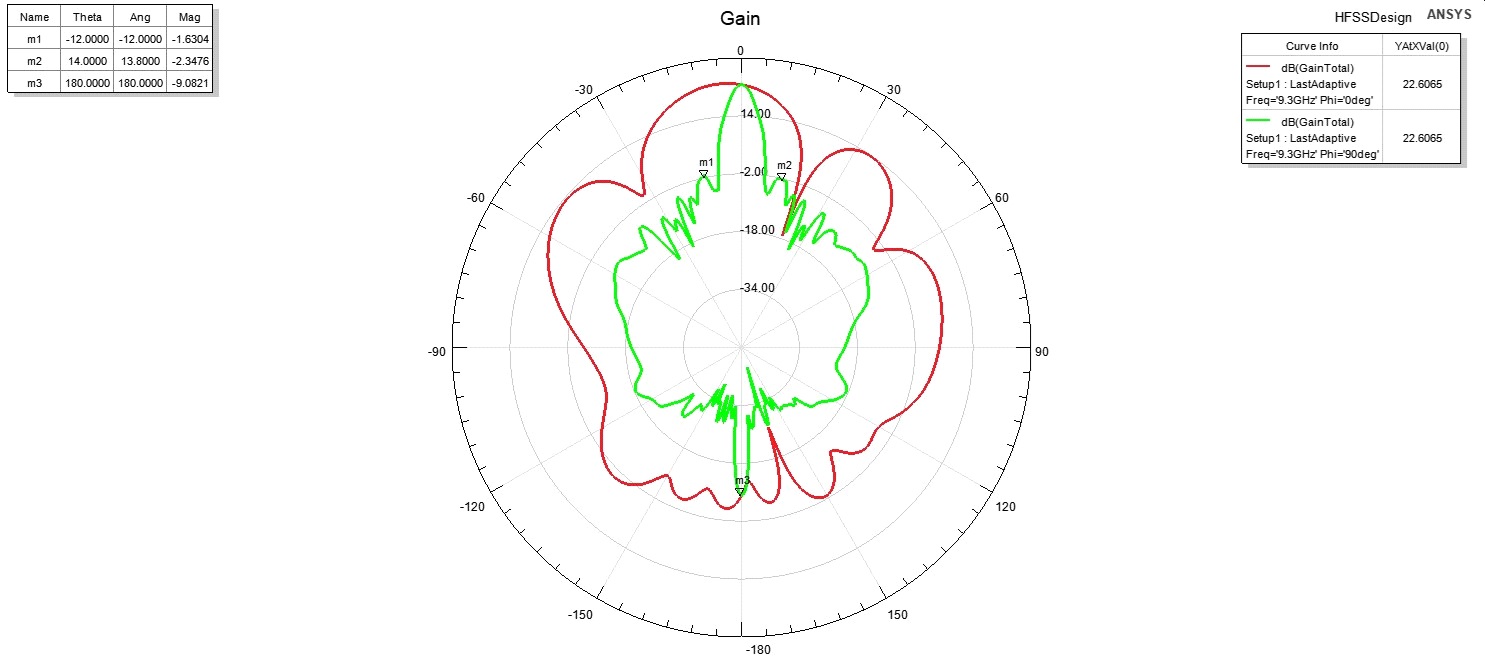

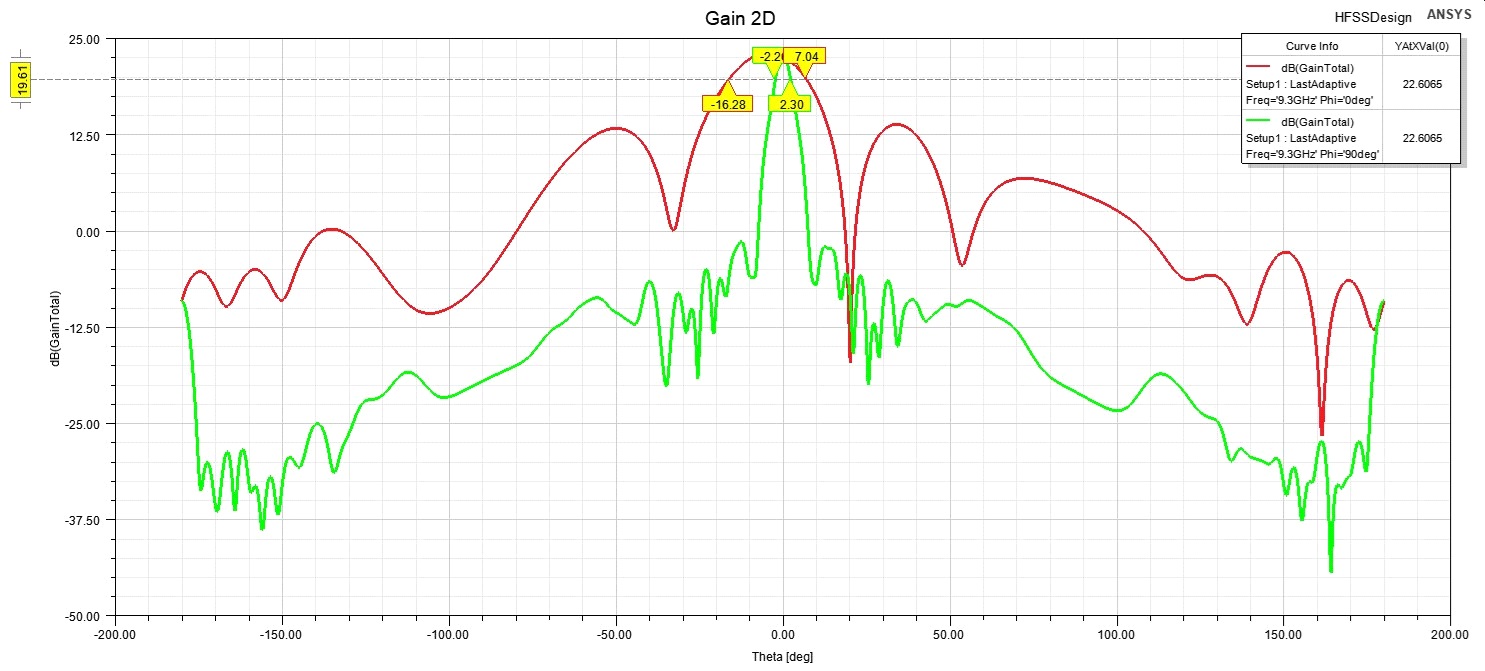

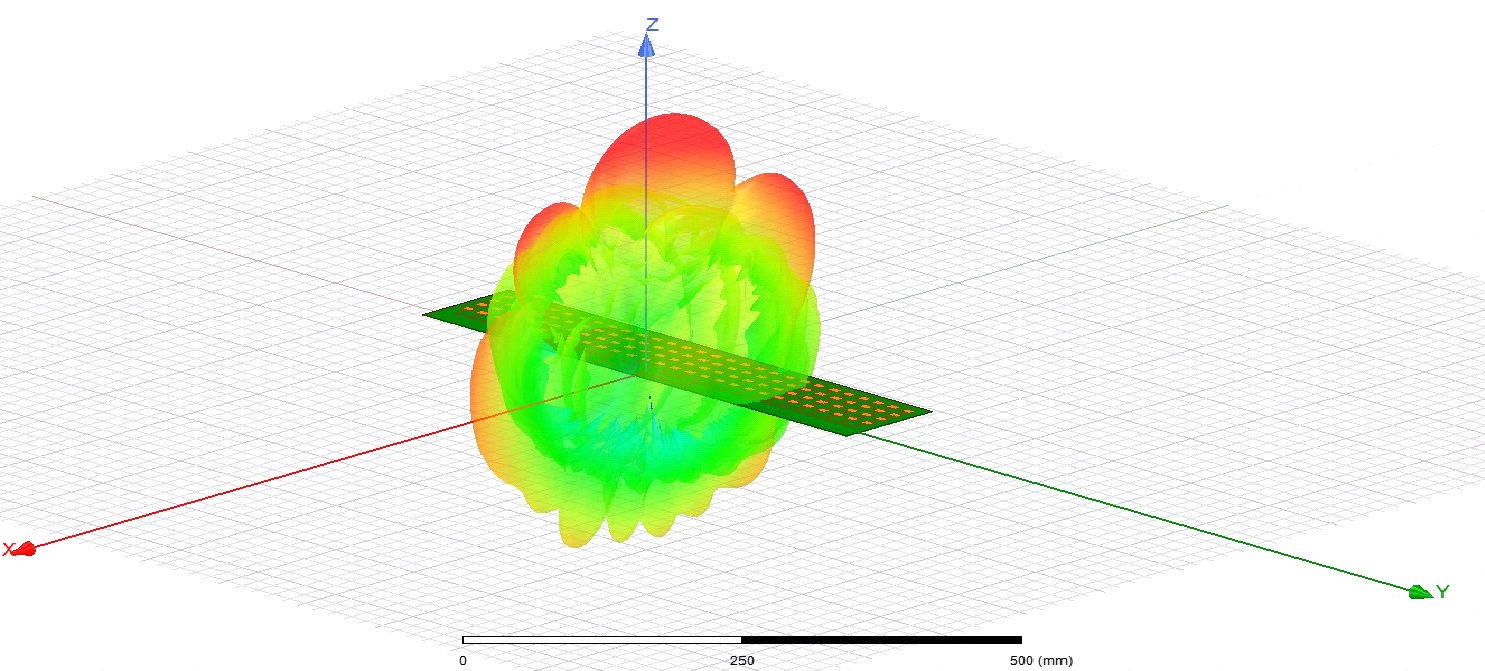

The antennas in the three channels are the same and have the following parameters at average operating frequency:

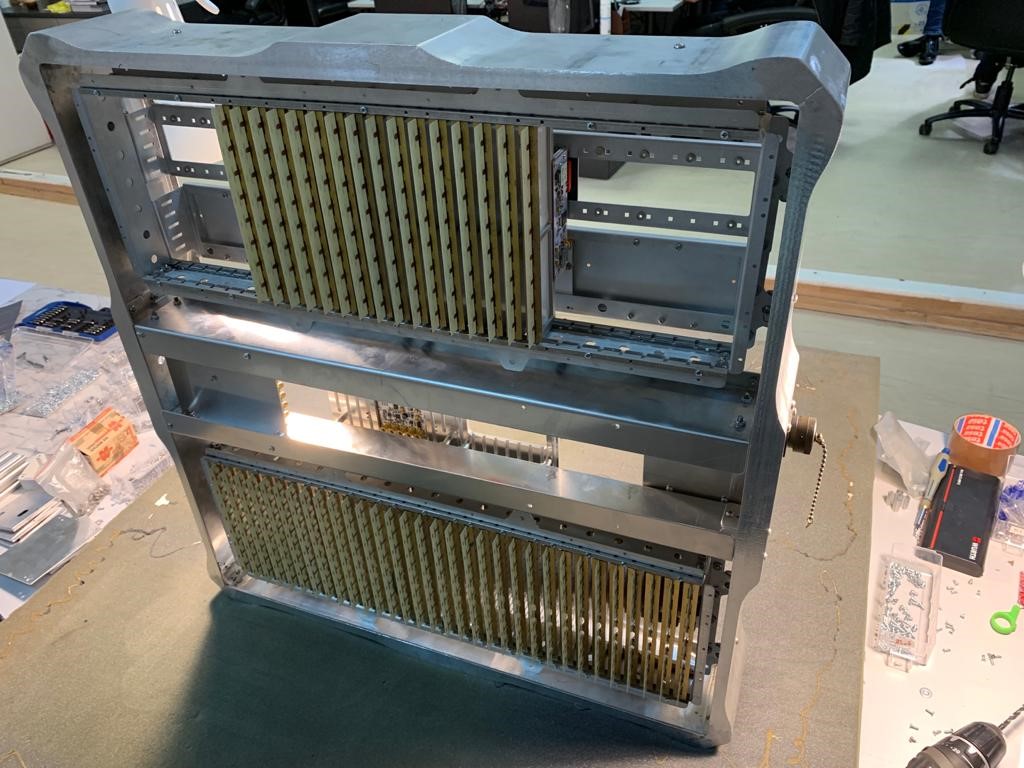

Antenna Modules
